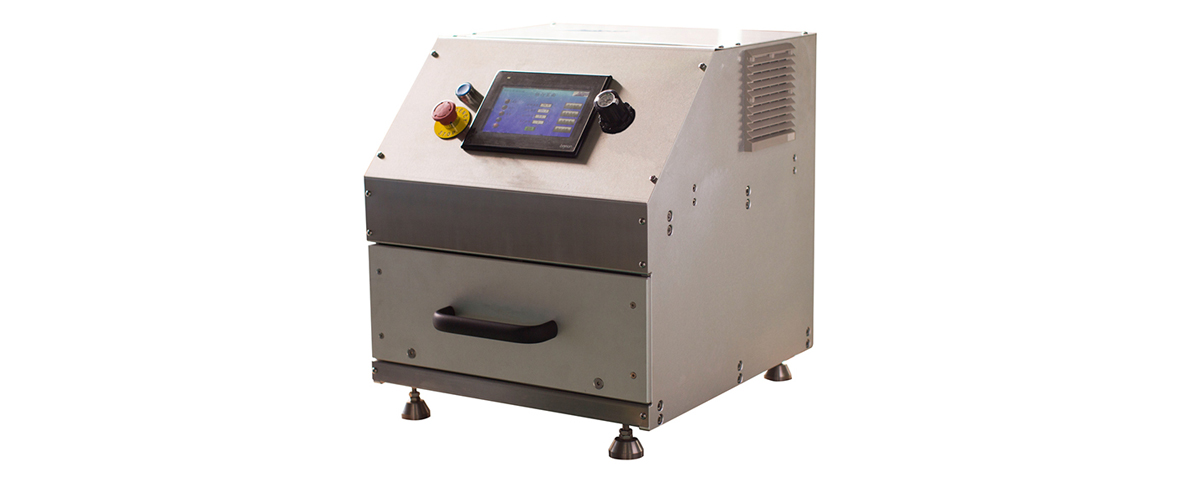

| Scope of application: | Heat seal of blister box |
| Model: | TS400-M |
| Main material of machine: | Aluminum alloy, 304 stainless steel |
| Dimensions: | 500mm*550mm*570mm |
| Machine weight: | About 150 kg (excluding mould) |
| Power supply: | 220 V 50 / 60 Hz single phase 2.4 kw |
| Supply gas: | Pressure 5 bar - 8 bar, about 18 L / min |
| Heat seal size: | 300mm*400mm |
| Packaging depth: | Deepest100mm |
| Heat sealing speed: | Up to 12 cycles per minute, depending on the proficiency of the operator |
| Heat seal pressure: | 0.1-0.6 Mpa Adjustable |
