| Scope of application: | Heat seal of blister box |

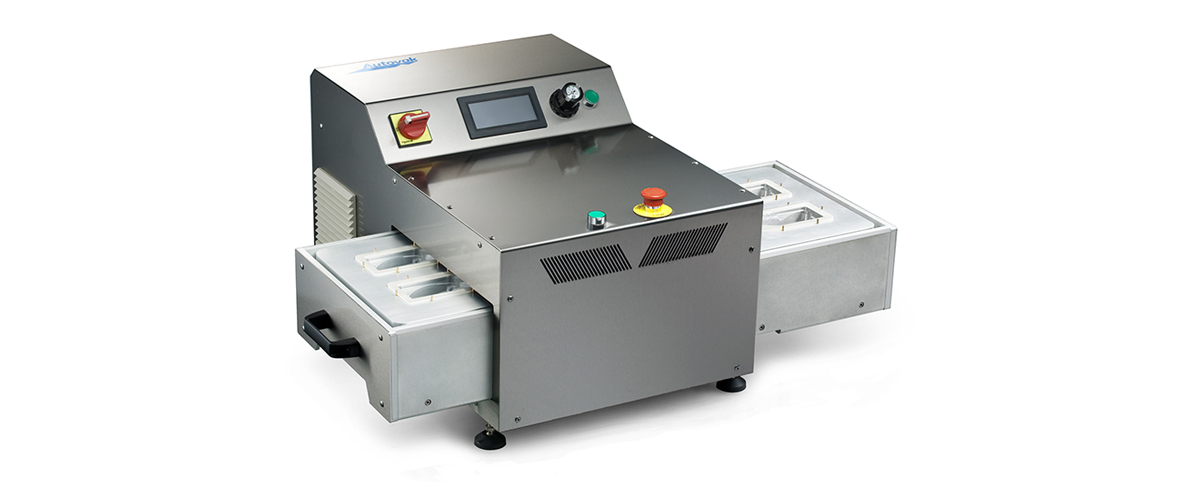

| Model: | TS400 |
| Main material of machine: | 304 stainless steel, aluminum alloy |
| Dimensions: | 1000mm*715mm*450mm |
| Machine weight: | About 150 kg (excluding mould) |
| Power supply: | 220 V 50 / 60 Hz single phase 3.5 kw |
| Supply gas: | Pressure 5 bar - 8 bar, about 18 L / min |
| Heat seal size: | 300mm*400mm |
| Packaging depth: | Deepest100mm |
| Heat sealing speed: | Up to 12 cycles per minute, depending on the proficiency of the operator |
| Heat seal pressure: | 300-1500Kgf Adjustable |
